10l lpe full automated extraction equipment system for cannabis & hemp plants

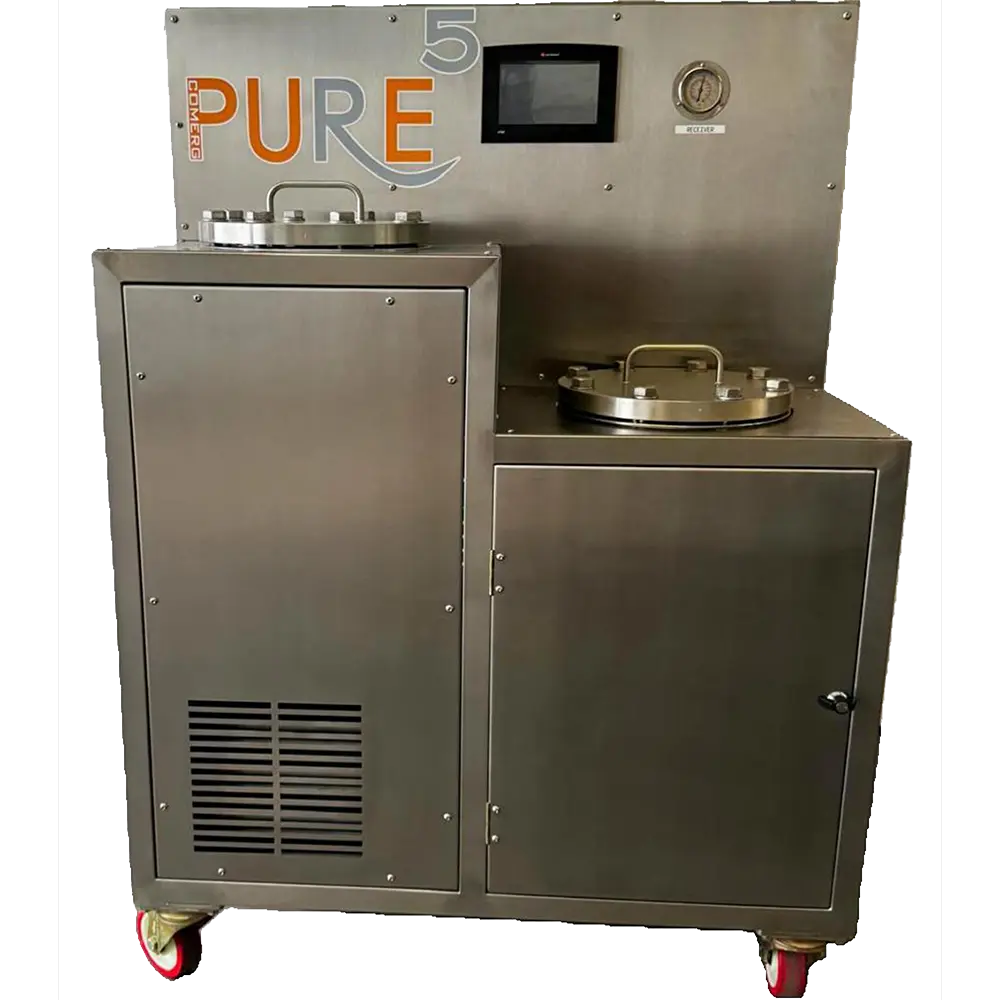

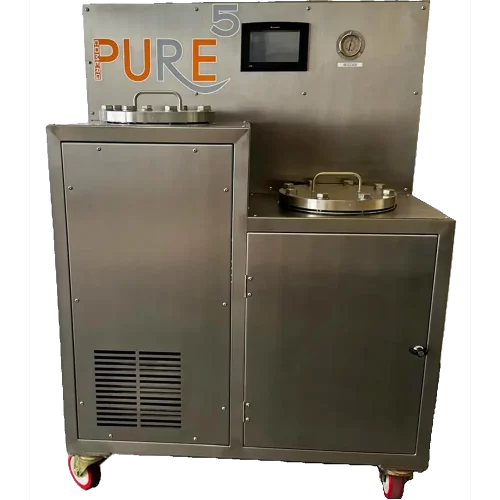

1x10l Vessel R134a Full Automation Cannabis Extraction Equipment shot by the front side

10L LPE Fully Automated Aerosol Extraction System

  • Volume: 2x10L vessel holds up to 2-4 pound of dry material
  • Pressure: Maximum operating pressure 16 bar
  • Temperature: Max 60°C/140°F
  • Material: 304 stainless steel
  • Vessel: interior is polished to food grade level
  • Closure: ASME flange, both ends
  • Sealing: Flanges with TFE flat seals
  • Sensors: Pt100 sensors
  • Volume: 10 liters (5.13 gallons)
  • Safety: spring loaded safety relief valve
  • Orientation: Horizontal
  • Maximum Solvent Content: 32 Kg
  • Separator: Jacketed separator/collection vessel
  • Volume: 10 Liter
  • Pressure: Maximum pressure 10 bar
  • Temperature: max 60°C (140°F)
  • Materials: 304 stainless steel
  • Sealing: Flanges with PTFE flat seals
  • Safety: Spring loaded safety release valve
  • Flow path: Continuous/batch gravitational path
  • Construction: Refrigeration unit
  • Materials: All 304 stainless steel
  • Cooling/Heating: R134a refrigerant
  • Refrigeration: heat pumping
  • Temperature range: -10C to 50C (14F to 158F)
  • Maximum refrigerant content: 2 kg
  • Height: 1550 mm
  • Length: 1420 mm
  • Width: 780 mm
  • Material: 304 stainless steel
  • Weight: 550 kg
  • Voltage: 230V
  • Power: 4kW
  • Plug: 4-way 50A outlet
  • Functions: Fully automatic programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature, and time.
  • Safety: Pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization/safety valves.
Ask for details about 10L LPE Fully Automated Aerosol Extraction System
Category:

Description

Introducing our entry-level 10L LPE fully automated cannabis Aerosol Extraction equipment, a cutting-edge solution for cannabis extraction. Using natural R134A solvent, this system preserves essential plant compounds at room temperature and low pressure. It’s user-friendly, cost-effective, and ensures pure, Full Spectrum extracts. From farming to distillation, PURE5™ offers a complete range of cannabis processing equipment, providing businesses with everything they need for high-quality, efficient processing. Experience innovation and quality with PURE5™.

Discover the convenience of renting our 10L LPE Full Automatic Aerosol Extraction System for as low as $2,750 per month. Benefit from its features without the need for a long-term purchase commitment. Minimum rental period: 6 months.

Extraction

R134a aerosol equipment designed and manufactured by PURE5™ Extraction is one of the latest cutting edge techniques to enhance the speed, improve the efficacy and achieve best quality of the cannabis extracts. Using R134a aerosol gas is a cutting-edge process that offers a “solventless” approach to the extraction of the  desired active compounds from the cannabis plant material. This process is designed to directly replace the CO2 liquified gas process and falls into the same category of facility certification less the pressure vessel and toxic leakage monitoring.

The small size, non polar and inert nature of the aerosol molecule helps to penetrate the plant tissue and extracts thoroughly the oil soluble fractions. We extraction is performed at room temperature conditions with no thermal degradation or loss of volatile compounds during isolation and the extraction process is seamless to the full spectrum resin delivered from the plant. Full terpene profile is collected without degradation of components and it is easily separated from solvent.

The aerosol does not extract solids and chlorophylls and in many cases winterization may not be required. The extracts are PH neutral and suitable for many pharmaceutical applications that are pH sensitive. Low boiling point eliminates the need for complex and slow solvent recovery.

The extracted oil is a liquid mirror of the flower strain profile and bears the same experience when consumed, an experience that cannot be achieved with any other extract.

Infusion

Very often your flower may end up with potency that is below than the market accepted value. For example if your dispensary takes over 20% potent flower and your grow batch is tested at 15% do not worry, we have the solution for you. You just infuse your flower with the extra 5% you need in minutes utilizing the same equipment you used to extract it. The room temperature safe and gentle process using PURE5 Equipment allows multiple uses of the process.

We have designed revolutionary technology because we are looking at the cannabis industry the same way as the gourmet industry. Give your clients an experience that they have never seen before. Just cook for them in the PURE5 machine, mix and extract flavors all together, infuse the flower with natural oils, and remediate components form the flower. All that is possible with minimum effort, speak with us for more details on how to achieve best performance.

Since we have mentioned the gourmet experience, you can enhance your cannabis products with local flavors and sensations. Example recipes: Add 50g fresh ginger root in the extraction chamber with your cannabis flower to add the spicy ginger flavor to your vape juice. Add 100g mango fruit to add tropical flavor. Add 50g lavender flowers or lemon peels to boost the linalool and limonene terpene in your extract produced from your flower.

Datasheet

Download the Datasheet

Demo



10L LPE Extraction System CBD oil output
